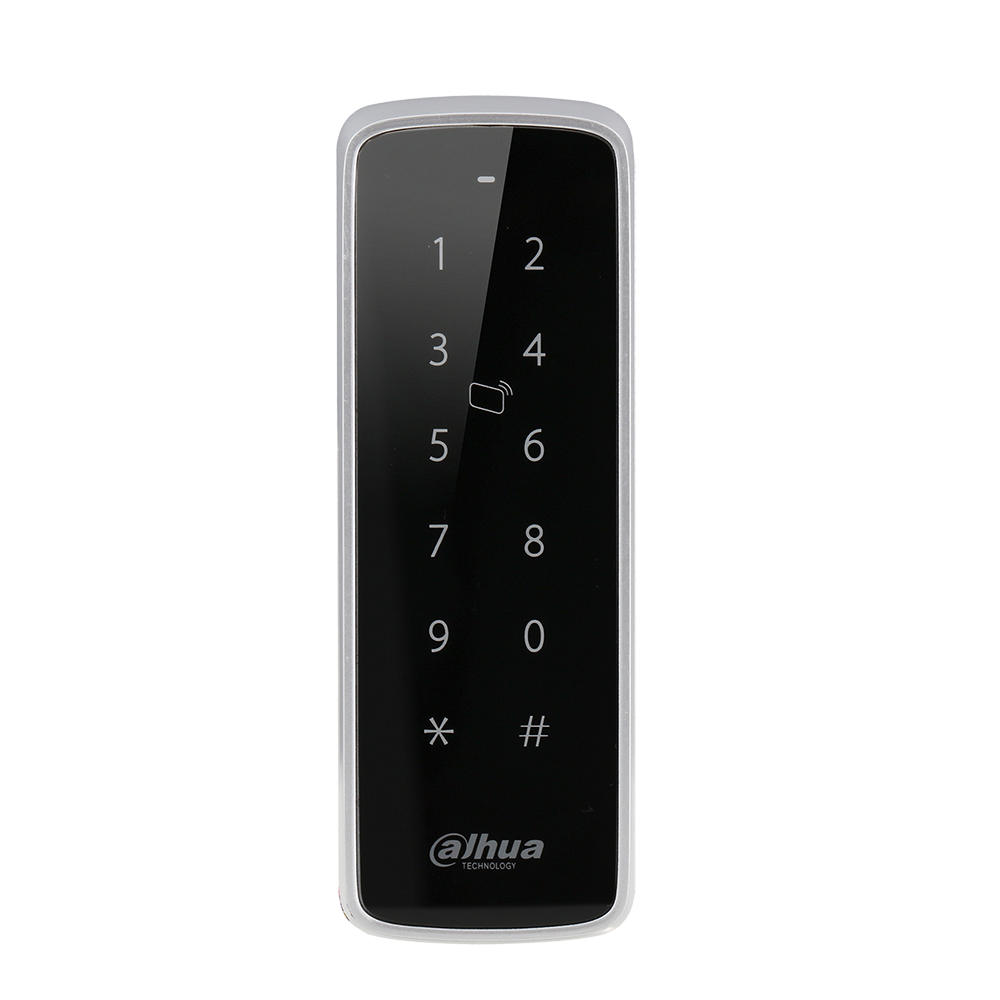

DHI-ASR1201D
Slim Water-proof RFID Reader
- Support RS485, Wiegand34 protocol(Wiegand 26 optional)
- 13.56MHz(Mifare)
- 125KHz(EM-ID)
- Red and Blue LEDs
- Watch dog function ensure device free from halting
- Water-proof(Outdoor use)
- Surface/Flush mounted installation
Danh mục: Access Control, Readers
Technical Specification | ||
Model | ASR1201D | ASR1201D-D |
System | ||
Main Processor | 8 Bit | |
Read | ||
Read Format | 13.56MHz | 125KHz |
Read Range | 6-8cm (max.) | |
Reading time | <0.1s |
Function | ||
Tamper Alarm | Yes | |
Interface | ||
To Controller | RS485, Wiegand34(Wiegand 26 optional) | |
General | ||
LED Indicator | Yes | |
Beep Tone | Buzzer | |
Ingress Protection | IP65 | |
Power Supply | 5-16V DC / 100mA/ 300mA/ 800mA | |
Working Environment | -30°C-+60°C | |
Working Humidity | ≤95% | |
Dimension(W×D×H) | 135*47.5*16mm | |
Weight | 0.18kg |
